Type 09420

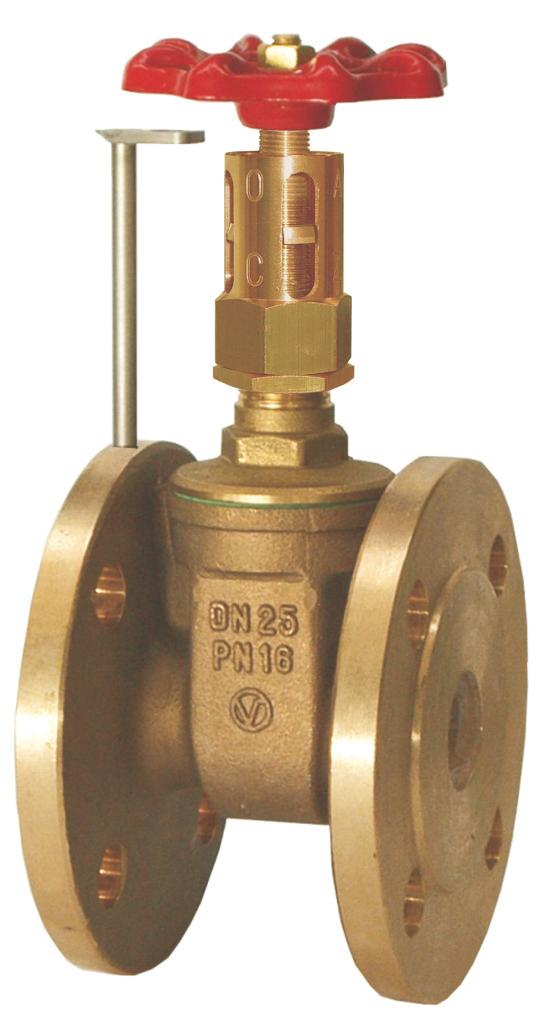

Flanged Gate Valves, PN16, DIN EN 12288

Bronze body, screwed topwork in brass with maintenance-free gland packing (O-Ring) and non rising stem flanged connection acc. to DIN EN 1092-3 PN16

Part No. 09420.X.100000

- Valve with opening indicator

Part No. 09420.X.110000

- Valve with opening indicator and locking device without lock

Part No. 09420.X.120000

- Valve with opening indicator and locking device with lock

Applications:
Suitable for transformer oil.
Working temperatures: -25°C / -13°F (248K) up to +120°C / +248°F (393K) and maximal 6.0 bar

option: with locking device

Materials		DIN EN	ASTM
1	Body	CC491K	B 62 UNS C83600
2	Wedge	CC491K	B 62 UNS C83600
3	Stem	CW614N	B 249 UNS C38500
4	Bonnet gasket	Klingersil C-4400
5	Headpiece	CW614N	B 249 UNS C38500
6	O-Rings	FPM (Viton)
7	Handwheel	Aluminium - diecasting

Standard marking acc. to Pressure Equipment
Directive 97/23/EG (PED).

Type 09420	Technical data
Nominal size	DN	25	32	40	50	65	80	100
Dimension code	.X.	0250	0320	0400	0500	0650	0800	1000
Face-to-face dimension	FF	80	90	100	110	130	150	165
Height	H	138	152	169	208	253	281	318
Flange diameter	D	115	140	150	165	185	200	220
Width of flange	b	12	14	14	16	16	18	20
Handwheel-Ø	B	70	80	80	110	150	150	150
Wrench size across flats	S₂	8	9	9	11	12	14	14
Weight	ca. kg	2.7	3.7	4.9	6.7	9.4	12.5	16.2
