Type 03090

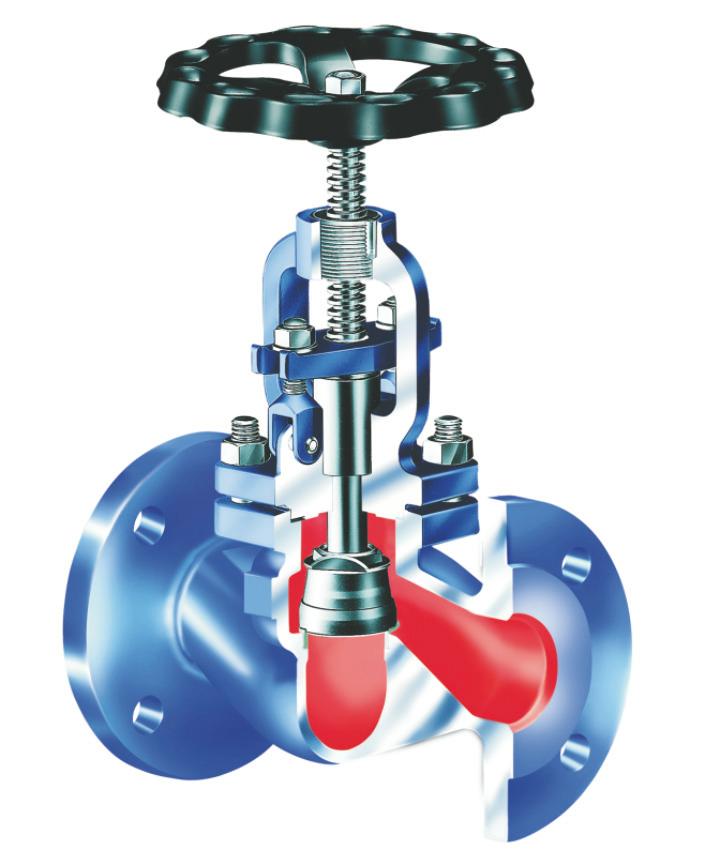

Globe Valves, PN40, DIN 3356-1 Body and topwork in cast steel seat and disc in stainless steel, metal to metal seated Part No. 03090.X.0000 Flanged connection acc. to DIN EN 1092-1 PN40 face-to-face dimension acc. to DIN EN 558-1, Reihe 1 Available options - on request only: - Angled Valves - Valve with control disc Applications: Suitable for non-toxic, non-inflammable fluids, gases and vapours. The laws, regulations and standards are to observe for the range of application. Working temperatures: -10°C / +14°F (263K) up to +400°C / +752°F (673K) |
|
|||||||||||||||||||||||||||||
|
|
Type 03090 | Technical data | |||||||||||
Nominal size | DN | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
Dimension code | .X. | 0150 | 0200 | 0250 | 0320 | 0400 | 0500 | 0650 | 0800 | 1000 | 1250 | 1500 |
Face-to-face dimension | FF | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 |
Height | H | 190 | 190 | 205 | 205 | 245 | 255 | 295 | 325 | 380 | 425 | 520 |
Flange diameter | D | 95 | 105 | 115 | 140 | 150 | 165 | 185 | 200 | 235 | 270 | 300 |
Width of flange | b | 12 | 12 | 12 | 14 | 14 | 16 | 16 | 18 | 20 | 20 | 22 |
Handwheel-Ø | B | 120 | 120 | 140 | 140 | 160 | 160 | 180 | 200 | 225 | 250 | 300 |
Wrench size across flats | S2 | 10 | 10 | 12 | 12 | 13 | 13 | 14 | 15 | 17 | 18 | 21 |
Weight | ca. kg | 4.4 | 5.4 | 6.3 | 7.0 | 10.5 | 13.8 | 21.0 | 27.5 | 40.0 | 61.0 | 88.5 |
Dimensions in mm. |
